[guide] Setting Up and Conducting Permeation Tests with Franz Diffusion Cells

Franz Diffusion Cells are widely used for assessing drug permeation in transdermal and topical formulations. Proper setup and execution are crucial to ensure accurate and reproducible results. Below is a detailed, step-by-step guide to conducting permeation tests with Franz Diffusion Cells:

1. Prepare the Receptor Solution and Fill the Receptor Chamber

  • Begin by selecting the appropriate receptor solution. The solution must closely mimic physiological conditions to ensure reliable results. For hydrophilic drugs, phosphate-buffered saline (PBS) is commonly used. For lipophilic drugs, a mixture of solvents like ethanol-water may be necessary.
  • Degas the receptor solution to prevent the formation of bubbles, which can interfere with diffusion.
  • Carefully fill the receptor chamber with the solution using a pipette or syringe, ensuring no air bubbles remain trapped. Proper filling ensures complete contact with the test membrane.

2. Place the Test Membrane Securely Between the Donor and Receptor Chambers

  • Select the appropriate membrane type: synthetic membranes, human skin, or animal skin. Ensure the membrane is preconditioned in the receptor solution to maintain hydration.
  • Position the membrane securely between the donor and receptor chambers, making sure it is flat and wrinkle-free to avoid inconsistencies in diffusion.
  • Secure the membrane in place using clamps or o-ring seals to create a leak-free assembly.

3. Add the Topical Formulation to the Donor Chamber

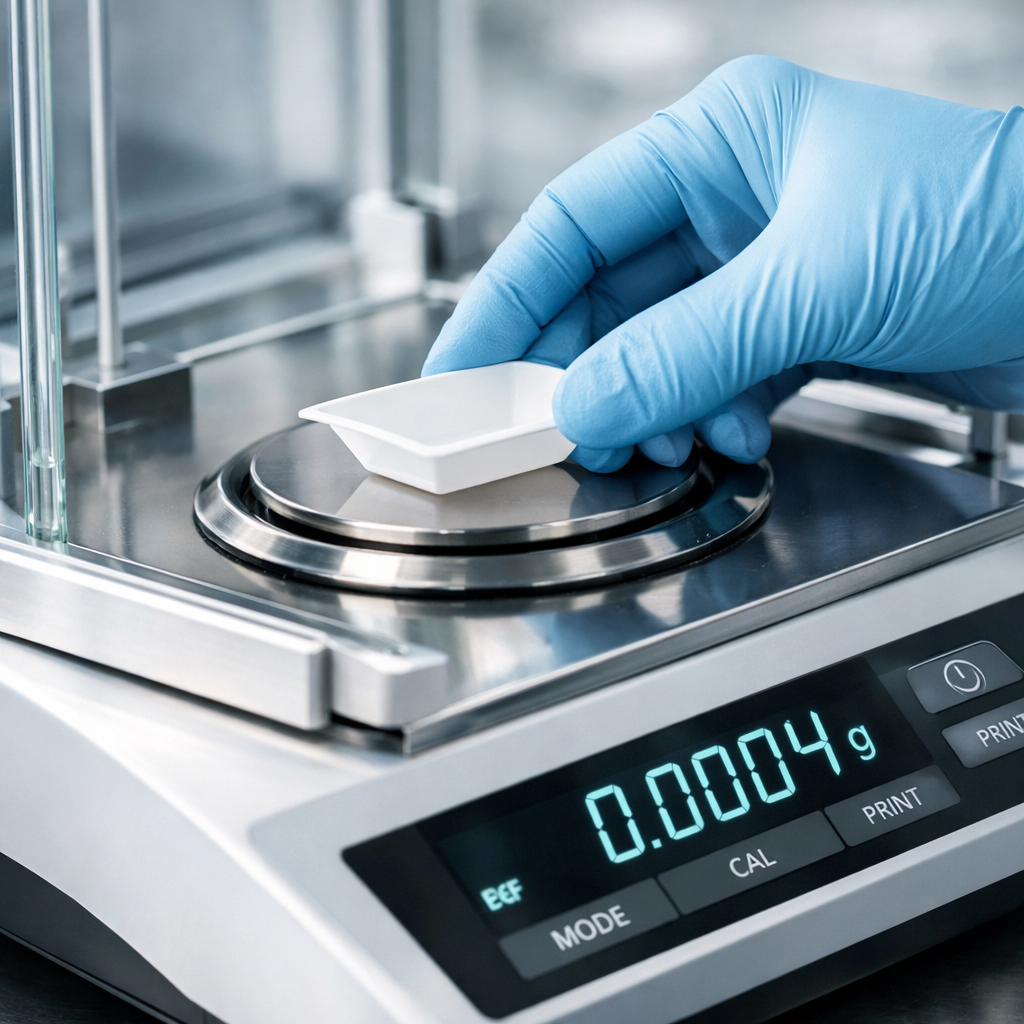

  • Weigh and carefully apply the topical formulation onto the membrane surface in the donor chamber. The amount of formulation should be consistent across all samples to ensure reproducibility.
  • Cover the donor chamber with parafilm or a lid to minimize evaporation during the test.

4. Ensure Proper Temperature Regulation and Sampling Intervals

  • Connect the Franz Diffusion Cell to a water bath or temperature control system to maintain the temperature (typically 32°C for skin studies) throughout the experiment. This step mimics physiological skin conditions.
  • Set up a sampling schedule to collect receptor solution at predetermined time intervals (e.g., every 30 minutes, 1 hour, etc.). Withdraw small aliquots of the solution and replace the same volume with fresh receptor solution to maintain sink conditions.

5. Analyze Collected Samples Using Chromatography or Spectroscopy

  • Analyze the collected samples using suitable analytical techniques such as High-Performance Liquid Chromatography (HPLC) or Ultraviolet-Visible (UV-Vis) spectroscopy to quantify drug concentration.
  • Plot the cumulative amount of drug permeated over time to evaluate the permeation rate.
  • Ensure proper validation of analytical methods to guarantee accuracy and precision in results.

By following this step-by-step process, researchers can obtain reliable data on drug permeation, helping optimize formulations for transdermal and topical delivery systems. Franz Diffusion Cells remain an indispensable tool for permeation studies due to their precision and reproducibility.

Or you can use our PermeGear set consists of a set of Franz Diffusion Cells, V-Stirrers and a Water Circulator. Here is the proper way of the system’s setup, setting and the cleanup:
